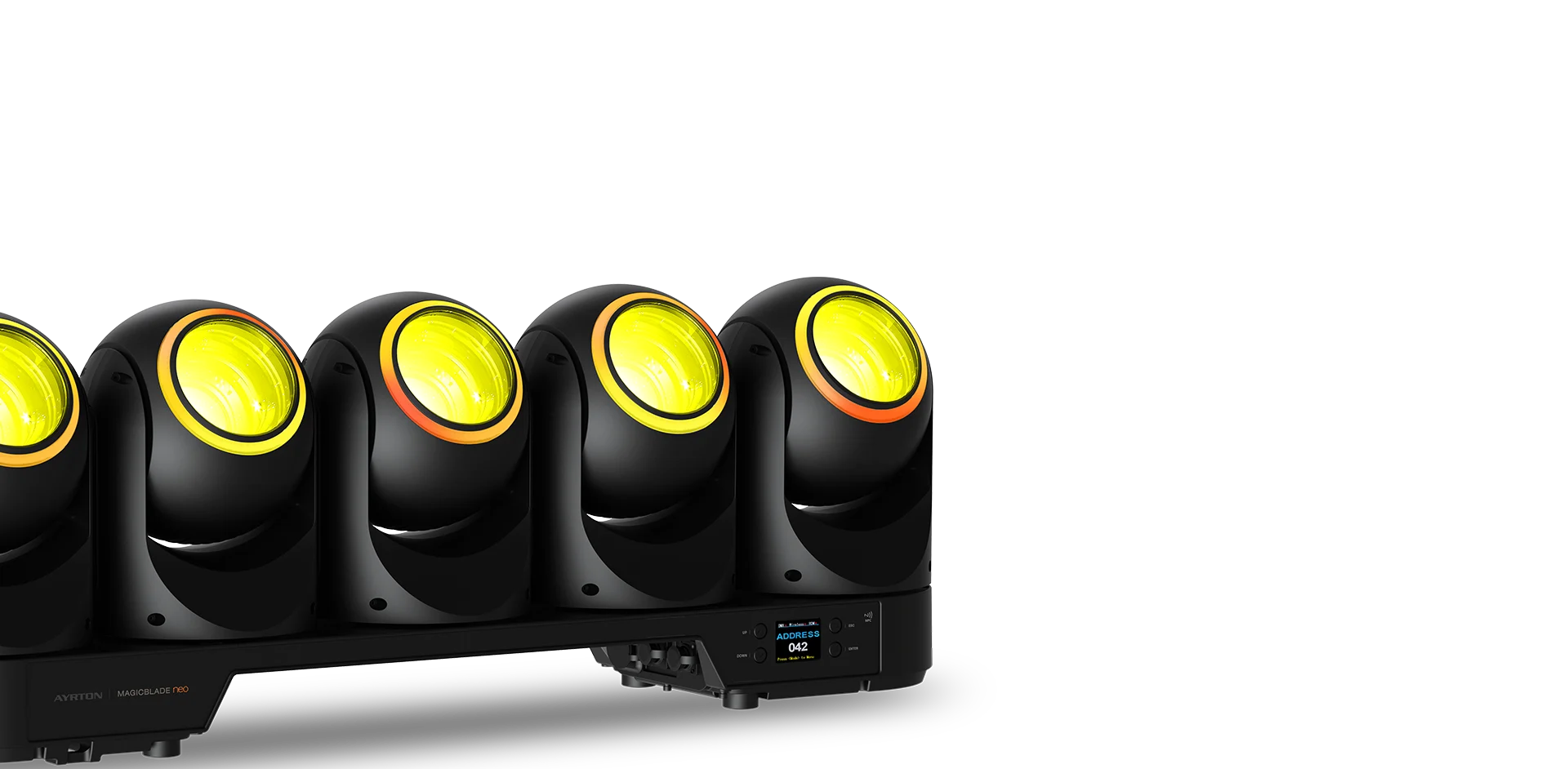

Ayrton MagicBlade Neo — LED moving-head lighting effect
Ayrton MagicBlade Neo is a LED moving-head lighting effect for stage lighting. Key selection details for this model: Fixture light output: ≤15,000 lm (Stage Fan); Illuminance at 5 m: 16,000 lx (1 head); Zoom: 3–30°; Front lens: 5 × 100 mm.
←Previous productAyrton MiniPanel FX — LED moving-head lighting effect
→Next productAyrton MagicPanel FX — LED moving-head lighting effect
Ayrton MagicBlade Neo
Ayrton MagicBlade Neo is a LED moving-head lighting effect for stage lighting. Key selection details for this model: Fixture light output: ≤15,000 lm (Stage Fan); Illuminance at 5 m: 16,000 lx (1 head); Zoom: 3–30°; Front lens: 5 × 100 mm.
Key specifications
| Fixture light output | ≤15,000 lm (Stage Fan) |
|---|---|
| Illuminance at 5 m | 16,000 lx (1 head) |
| Zoom | 3–30° |
| Front lens | 5 × 100 mm |
| Light source | 5 × RGBL LED |
| Housing protection | IP65 |
| Weight | 32.4 kg |
| Maximum power consumption | 800 W |
| Dimensions (W × H × D) | 1008 × 200 × 352.5 mm |
| Control | DMX512 / RDM / Art-Net / sACN |
| Pan / Tilt | 5 × ∞ pan / tilt |
| Manufacturer code | 015380 |
Specifications are based on the official Ayrton product page. Variant values are identified separately; light output refers to the fixture, not its light engine. Exact configuration, availability and the final quotation are confirmed on enquiry.
