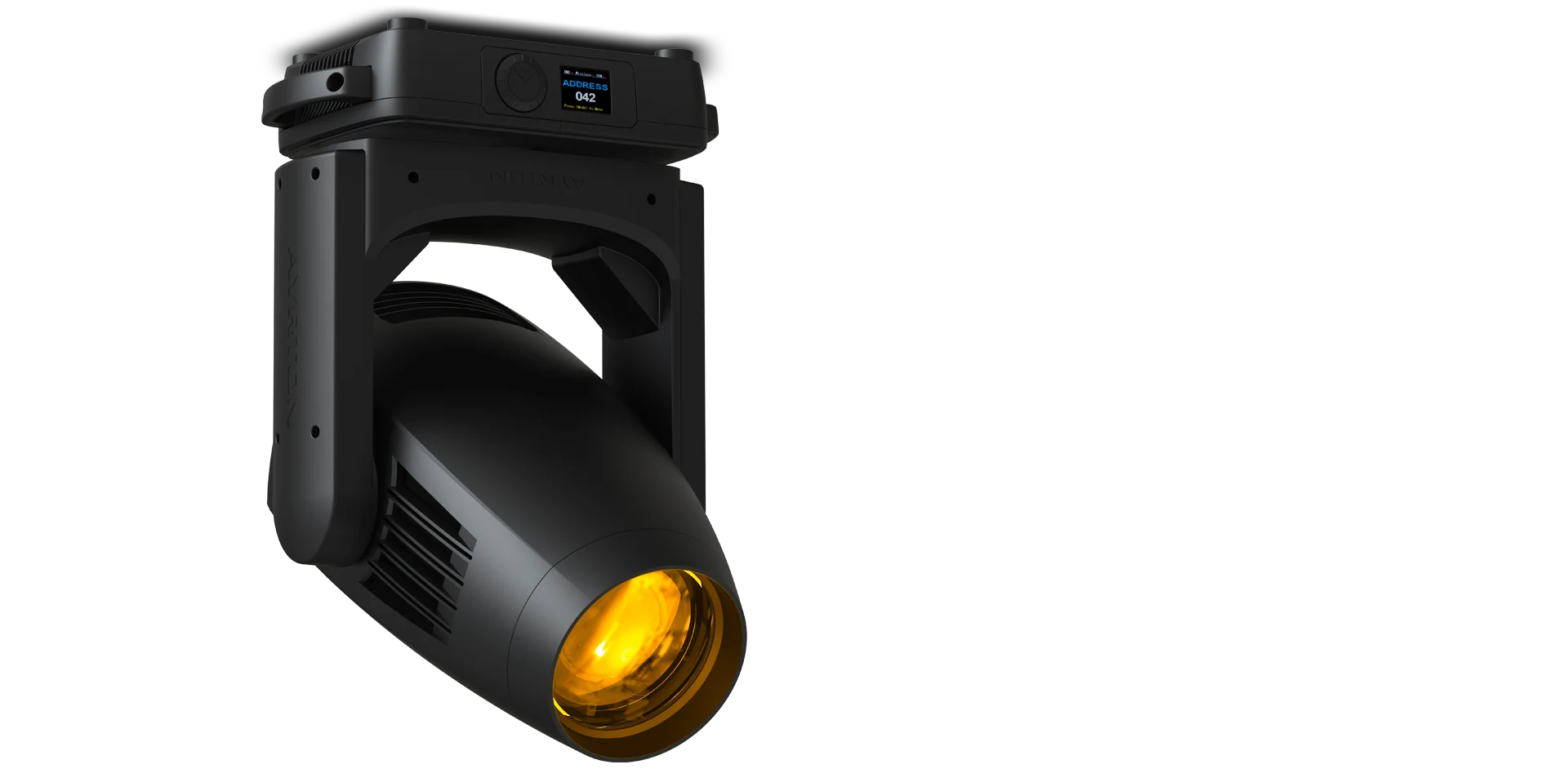

Ayrton Levante
Ayrton Levante is a LED wash moving head for stage lighting. Key selection details for this model: Fixture light output: S: ≤20,000 lm; TC: ≤15,000 lm; CRI: S: >70; TC: >90; Zoom: 6.9–57°; Front lens: 138 mm.
Key specifications
| Fixture light output | S: ≤20,000 lm; TC: ≤15,000 lm |
|---|---|
| CRI | S: >70; TC: >90 |
| Zoom | 6.9–57° |
| Front lens | 138 mm |
| Housing protection | IP20 |
| Weight | 22 kg |
| Maximum power consumption | 550 W |
| Dimensions (W × H × D) | 365 × 632 × 212 mm |
| Control | DMX512 / RDM / CRMX |
| Pan / Tilt | 540° / 263° |
| Colour system | CMY / variable CTO |
| Gobo | 7 rotating |
| Manufacturer code | S: 010240; TC: 010250 |
Specifications are based on the official Ayrton product page. Variant values are identified separately; light output refers to the fixture, not its light engine. Exact configuration, availability and the final quotation are confirmed on enquiry.
