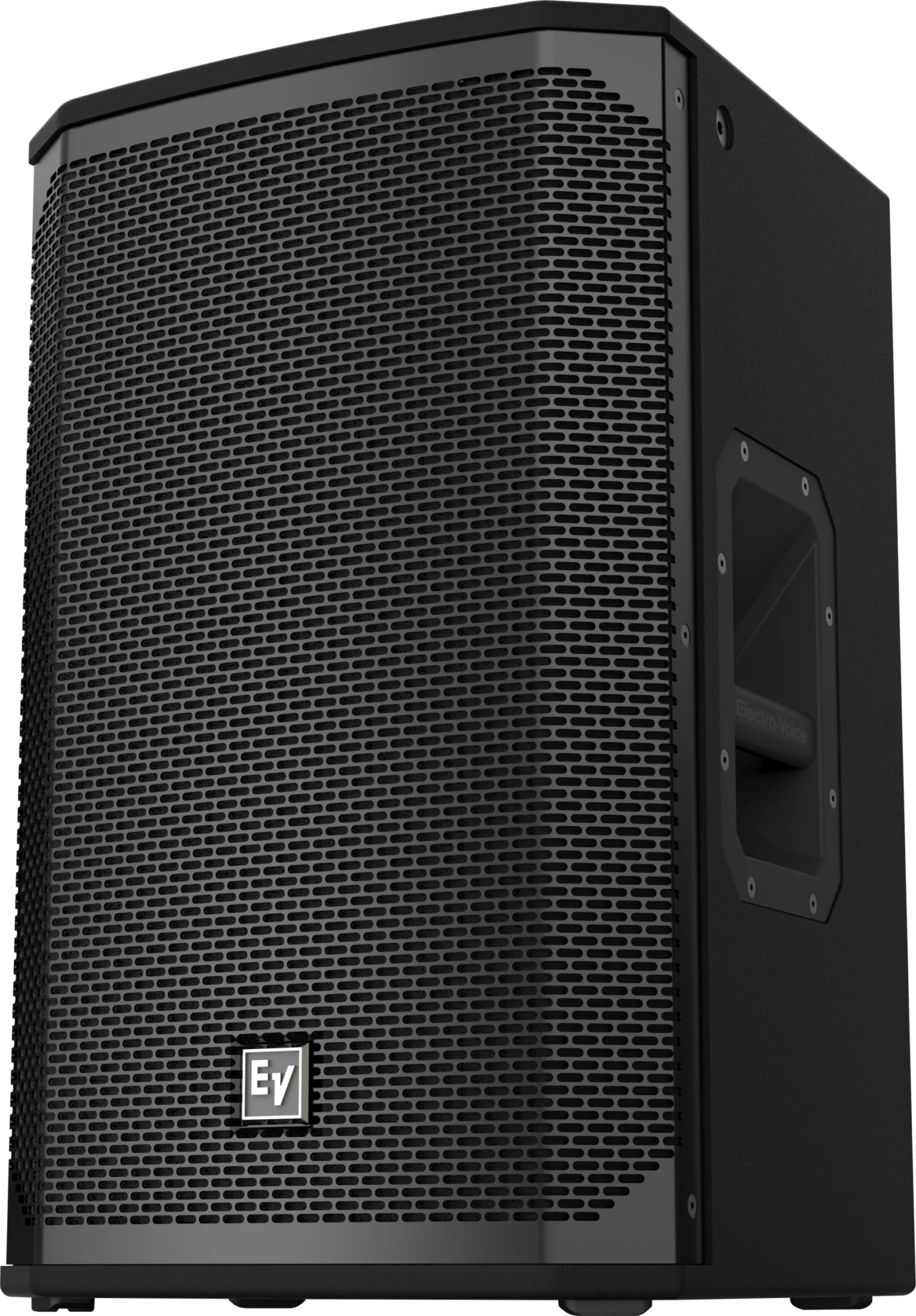

Electro-Voice EKX-12 — passive loudspeaker

Electro-Voice EKX-12 is a passive loudspeaker for portable sound reinforcement. Its manufacturer-specified frequency range is 55 Hz - 20 kHz, with a maximum SPL of 131 dB.

←Previous productElectro-Voice ZLX-8-G2 — passive loudspeaker
→Next productElectro-Voice EKX-15 — passive loudspeaker

Electro-Voice EKX-12 is a passive loudspeaker for portable sound reinforcement. Its manufacturer-specified frequency range is 55 Hz — 20 kHz, with a maximum SPL of 131 dB.

A compatible external power amplifier is required. Continuous and peak power handling are listed separately; amplifier, protection and filtering should be matched to the complete system.

Technical specifications EKX-12

Frequency response (-3 dB) 82 Hz — 18 kHz
Frequency range (-10 dB) 55 Hz — 20 kHz
Maximum SPL 131 dB
Power handling (continuous) 350 W
Power handling (peak) 1400 W
Nominal impedance 8 Ω
LF driver EVS-12M 300 mm (12 in)
HF driver DH-1M 1″
Connectors 2 × NL4
Dimensions (H × W × D) 607 × 375 × 356 mm
Net weight 17.4 kg
Coverage (H × V) 90° × 60°

Maximum SPL and frequency data are manufacturer measurements under specified test conditions. The power rating is not automatically continuous power; consult the official documentation for details.
