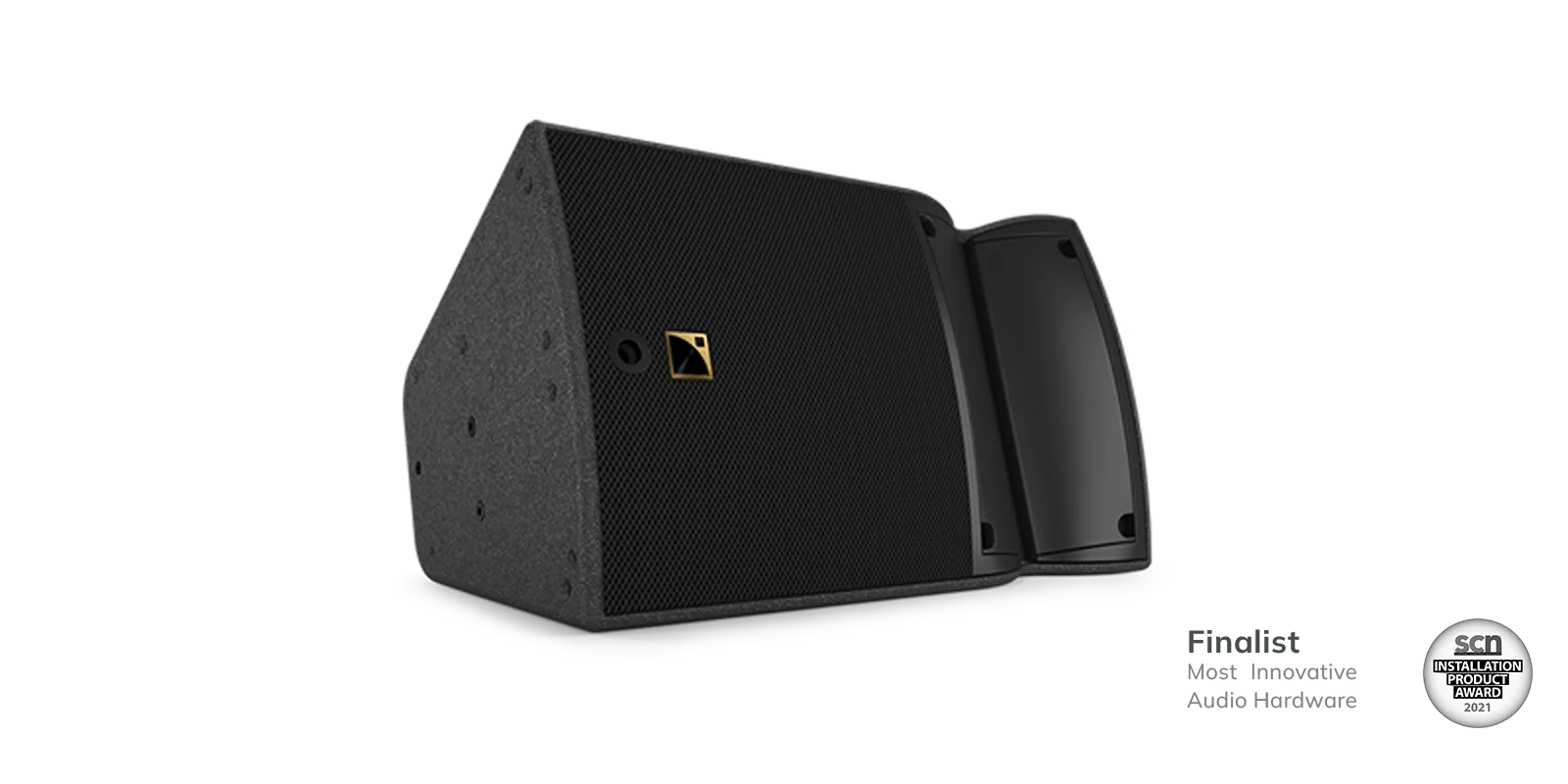

L-Acoustics A10i Wide — professional loudspeaker
A L-Acoustics sound-reinforcement component. Select the amplified controller, presets and accessories according to the manufacturer’s documentation. Price and availability on request.
←Previous productL-Acoustics A15 Focus — professional loudspeaker
→Next productL-Acoustics A10i Focus — professional loudspeaker
A L-Acoustics sound-reinforcement component. Select the amplified controller, presets and accessories according to the manufacturer’s documentation.
| Bandwidth (-10 dB) | 67 Hz – 20 kHz ([A10]) |
|---|---|
| Maximum SPL | 137 dB ([A10]) with LA2Xi (bridge mode) / LA4X / LA8 / LA12X 133 dB ([A10]) with LA2Xi |
| Directivity (-6 dB) | Enclosure: 30° L-Fins: 70° / 110° symmetric or 90° asymmetric |
| Transducers | LF: 1 × 10″ cone driver HF: 1 × 2.5″ diaphragm compression driver, neodymium |
| Nominal impedance | 8 Ω |
| Connectors | 1 × 4-point terminal block with push-in connection 1 × connector sealing plate with cable gland |
| Dimensions | 569 mm ( 22.4 in) / 347 mm (13.7 in) / 366 mm (14.4 in) |
| Net weight | 18 kg / 40 lb |
| IP protection | IP55 |
| Amplified controller | LA2Xi / LA4X / LA8 / LA12X |
Bandwidth and SPL depend on the stated presets and manufacturer measurement conditions. Consult the official documentation before system design and installation.
Price and availability on request.
